Deformed-Bar Size and Detailed Guide for Construction Projects
When it comes to reinforced concrete structures, deformed bars (also known as rebars) play a critical role in providing strength and durability. Unlike plain steel bars, deformed bars have surface ridges or lugs that improve bonding with concrete. This enhanced grip prevents slipping and significantly increases the structural integrity of buildings, bridges, and other infrastructure projects.
In this blog, we’ll explore deformed bar sizes, their specifications, types, and key details you should know before choosing the right one for your construction project.

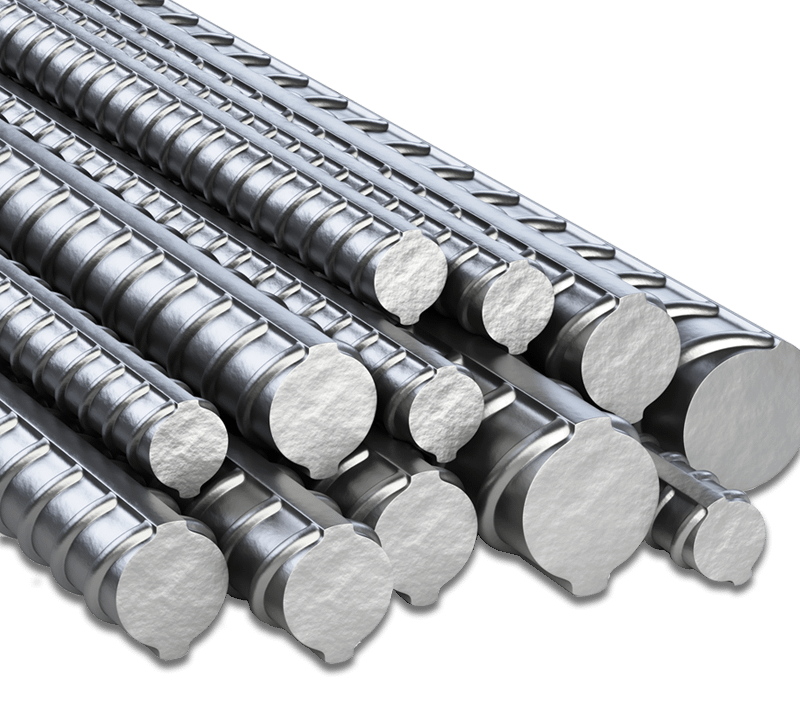

What Is a Deformed-Bar?
A deformed bar is a steel reinforcement bar designed with ribs or patterns on its surface. These patterns create better friction between the steel and concrete, ensuring a strong mechanical bond. Because concrete is strong in compression but weak in tension, deformed bars help balance this weakness by providing tensile strength.
Deformed bars are widely used in residential buildings, commercial complexes, highways, dams, and industrial foundations.
Standard Deformed-Bar Sizes
Deformed bars are available in various diameters, and each size serves a different structural purpose. The most commonly used sizes are:
- 6 mm
- 8 mm
- 10 mm
- 12 mm
- 16 mm
- 20 mm
- 25 mm
- 28 mm
- 32 mm
- 40 mm
The size refers to the diameter of the bar. Larger diameters are typically used for heavy-load structures such as bridges and high-rise buildings, while smaller diameters are suitable for slabs and light structures.
Weight of Deformed-Bars
The weight of deformed bars is an important factor for cost estimation and structural calculations. The theoretical weight per meter can be calculated using this formula:
Weight (kg/m) = D² / 162
Where D is the diameter in millimeters.
For example:
- 8 mm bar = 0.395 kg/m
- 10 mm bar = 0.617 kg/m
- 12 mm bar = 0.888 kg/m
- 16 mm bar = 1.58 kg/m
- 20 mm bar = 2.47 kg/m
- 25 mm bar = 3.85 kg/m
Knowing the weight helps engineers determine how much steel is required for a project and estimate overall costs accurately.
Grades of Deformed-Bars
Deformed bars are also classified based on their yield strength. Some common grades include:
- Grade 40
- Grade 60
- Grade 75
Grade 60 is commonly used in many countries because it offers a good balance between strength and flexibility. Higher grades provide greater strength but may be less ductile.
In many regions, deformed bars follow international standards such as ASTM, BS, or IS specifications. Always check local building codes before selecting a grade.
Types of Deformed-Bars
There are different types of deformed bars based on coating and composition:
- Carbon Steel Rebars – Most common and cost-effective.
- Epoxy-Coated Rebars – Used in corrosive environments like coastal areas.
- Galvanized Rebars – Provide better corrosion resistance.
- Stainless Steel Rebars – Highly durable but more expensive.
The choice depends on environmental conditions and budget.
Applications of Different Sizes
- 6 mm to 8 mm: Used in stirrups and ties.
- 10 mm to 12 mm: Common for slabs and small beams.
- 16 mm to 20 mm: Used in columns and heavy beams.
- 25 mm and above: Used in foundations and high-load structures.
Using the correct size ensures safety and prevents structural failure.
Advantages of Deformed Bars
- Strong bond with concrete
- High tensile strength
- Improved durability
- Reduced slippage
- Better resistance to cracking
Because of these benefits, deformed bars are preferred over plain round bars in modern construction.
Storage and Handling Tips
Proper storage is essential to maintain quality. Keep bars off the ground to avoid moisture exposure. Store them in a dry place and protect them from excessive rusting. Although slight rust does not significantly affect performance, heavy corrosion can reduce strength.
How to Choose the Right Deformed Bar
When selecting deformed bars, consider:
- Structural load requirements
- Environmental conditions
- Budget constraints
- Local building standards
- Engineer recommendations
Never compromise on quality, as reinforcement is the backbone of any structure.
Final Thoughts
Deformed bars are an essential component of reinforced concrete construction. Understanding their sizes, weights, grades, and applications helps ensure a safe and durable structure. Whether you are building a small residential home or a large commercial project, choosing the right deformed bar size is crucial for long-term stability.
Always consult a qualified structural engineer before finalizing materials. The right decision today can prevent costly repairs in the future and guarantee the safety of your project for years to come.
