Rebar in Construction: A Complete Guide to Uses, Grades, and Reinforcement

If you’ve ever watched a building foundation get poured, you’ve probably noticed a grid of steel bars sitting inside the forms before the concrete truck even shows up. That steel is rebar, and it’s arguably the single most important material working behind the scenes in modern construction. Concrete is fantastic at handling compression — the crushing forces from a building’s weight pressing down — but it’s genuinely bad at handling tension, the forces that try to stretch or bend it. Rebar is what fixes that weakness.

This guide walks through what rebar actually is, the different grades and types you’ll run into on a job site, where each one belongs, and the placement practices that separate a structure built to last from one that starts cracking within a few years.

What Is Rebar, Exactly?

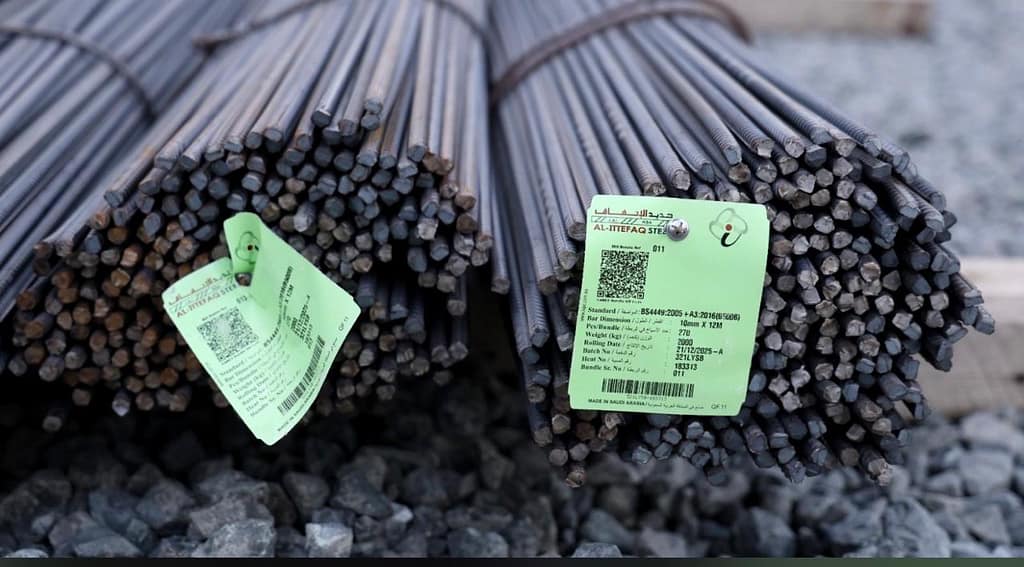

Rebar — short for “reinforcing bar” — is a steel bar, usually with a ribbed or textured surface, embedded into concrete to give it tensile strength. Plain concrete can hold up an enormous amount of weight straight down, but the moment you introduce bending, stretching, or lateral forces (think earthquakes, wind loads, or a slab flexing under a parked truck), unreinforced concrete will crack and eventually fail. Steel, on the other hand, is excellent under tension. Combine the two, and you get a composite material that handles compression and tension at the same time.

The ribbing on most rebar isn’t decorative — it’s called deformation, and it exists so the bar physically locks into the surrounding concrete instead of just sitting there like a smooth rod that could slip. That mechanical bond is what allows loads to transfer between the steel and the concrete as a single working unit.

Why Rebar Matters So Much

A few reasons rebar shows up in nearly every structural concrete pour:

• It resists tension and bending. Beams, slabs, and anything spanning a distance will experience bending forces that concrete alone can’t handle.
• It controls cracking. Concrete shrinks slightly as it cures. Rebar doesn’t stop that shrinkage, but it distributes the resulting stress so you get many hairline cracks instead of a few large, structurally significant ones.
• It improves earthquake and wind performance. Reinforced structures flex and absorb energy rather than shattering outright.
• It extends service life. A properly reinforced structure can last many decades longer than an unreinforced one under the same loading conditions.

Skip rebar, or install it incorrectly, and you’re not just risking cosmetic cracking — you’re risking structural failure.

Rebar Grades: What the Numbers Actually Mean

Rebar is classified by grade, which refers to its minimum yield strength — the point at which the steel begins to deform permanently under stress. In the U.S., grades are typically labeled by yield strength in thousands of pounds per square inch (ksi).

Grade 40 has a yield strength around 40,000 psi. It’s more ductile — meaning it bends more easily before breaking — which makes it a reasonable choice for lighter residential work where extreme strength isn’t the priority.

Grade 60 is the industry workhorse. With a yield strength around 60,000 psi, it’s used in the overwhelming majority of commercial and residential concrete work, from footings to slabs to columns.

Grade 75 and Grade 80 step up to higher yield strengths and are typically reserved for heavy structural applications — high-rise buildings, bridges, and anywhere engineers need more strength per bar without adding excessive bulk.

Grade 100 sits at the top end, used in specialized high-demand structural applications where reducing bar congestion while maintaining strength is a design priority.

Higher-grade steel isn’t automatically “better” for every job. It’s generally stiffer and less forgiving under seismic loading in certain configurations, so engineers choose the grade based on the specific structural design, local codes, and load calculations — not just by defaulting to the highest number available.

Common Rebar Sizes

Rebar is also sized by bar number, which in the U.S. system roughly corresponds to the bar’s diameter in eighths of an inch. A #4 bar is about ½ inch in diameter, a #8 bar is about 1 inch, and so on up to very heavy bars used in large infrastructure projects. Smaller bars (#3, #4) are common in slabs and light residential work, while larger bars (#8 and up) show up in columns, foundations, and heavy structural members carrying significant loads.

Types of Rebar

Not all rebar is made the same way, and the type matters just as much as the grade depending on the environment the concrete will sit in.

Carbon steel (black) rebar is the standard, most widely used type. It’s strong, affordable, and works fine in most conventional construction where corrosion isn’t a major concern.

Epoxy-coated rebar has a protective epoxy layer that resists corrosion, making it a common choice for bridges, parking structures, and anything exposed to de-icing salts or moisture.

Galvanized rebar is coated in zinc for corrosion resistance, offering a different protection mechanism than epoxy and often used in marine or coastal environments.

Stainless steel rebar offers the highest corrosion resistance of the common options. It costs significantly more, so it tends to appear in critical infrastructure or extreme-exposure environments where long-term durability outweighs upfront cost.

Glass fiber-reinforced polymer (GFRP) rebar is a newer, non-metallic alternative. It doesn’t corrode at all, which makes it attractive for structures where rebar corrosion has historically been a major maintenance issue, though it behaves differently than steel under load and isn’t a drop-in replacement in every application.

Welded wire mesh (WWM), while technically a different product from individual rebar, serves a similar reinforcing purpose in slabs and pavements where a uniform grid pattern is more practical than tying individual bars.

Where Rebar Gets Used

Rebar shows up almost anywhere concrete carries structural load:

• Foundations and footings — resisting settlement and uneven loading from the soil below
• Slabs on grade — controlling shrinkage cracking and distributing point loads
• Columns and beams — handling the bending and tension in elevated structural members
• Retaining walls — resisting the lateral pressure of soil pushing against the wall
• Bridges and highway infrastructure — enduring repeated dynamic loading and weather exposure
• Precast concrete elements — panels, beams, and pipes manufactured off-site with embedded reinforcement

Rebar Placement: Where the Real Skill Comes In

Choosing the right grade and type is only half the job. Placement determines whether that reinforcement actually does its job once the concrete cures.

Concrete cover — the distance between the rebar and the outer surface of the concrete — has to be maintained carefully. Too little cover and the steel is exposed to moisture and air, leading to corrosion that can crack the concrete from the inside out. Too much cover and the reinforcement is too far from the surface to control cracking effectively where it’s needed most.

Spacing matters just as much as cover. Bars placed too close together can prevent concrete from properly flowing and consolidating around them, creating voids. Spaced too far apart, and the reinforcement can’t adequately control cracking across the full section.

Chairs and spacers are used to hold rebar at the correct height off the forms so it doesn’t shift or sink to the bottom during the pour.

Tying and splicing — where bars overlap or connect — needs to follow the lap length specified by the structural engineer. A splice that’s too short won’t transfer load properly between bars, creating a weak point exactly where the design assumed continuous strength.

Rebar in tension vs. compression zones also matters. In a simply supported beam, for example, the bottom experiences tension while the top experiences compression, so reinforcement is typically concentrated where the tension forces are highest.

Getting any of these wrong doesn’t always show up immediately — it often shows up years later as unexpected cracking, spalling, or in worst cases, structural distress.

Common Mistakes to Avoid

A few issues come up repeatedly on job sites:

• Insufficient concrete cover, leading to premature corrosion
• Rust on rebar before placement — light surface rust is generally acceptable and doesn’t compromise bond strength, but heavy flaking rust or pitting is a problem
• Incorrect lap splice lengths, weakening structural continuity
• Skipping chairs and spacers, letting rebar sink during the pour
• Mixing incompatible rebar types in the same structural element without accounting for how they interact, particularly with dissimilar metals

Final Thoughts

Rebar isn’t glamorous — nobody takes photos of a finished building and thinks about the steel buried inside it — but it’s doing quiet, constant work every single day a structure stands. Choosing the right grade, the right type for the exposure conditions, and placing it correctly according to engineered specifications is what turns a pour of wet concrete into a structure that can carry loads safely for generations. Whether you’re pouring a residential footing or working on a highway bridge, the fundamentals stay the same: match the reinforcement to the load, protect it from the elements, and place it exactly where the engineering says it needs to be.
